Description

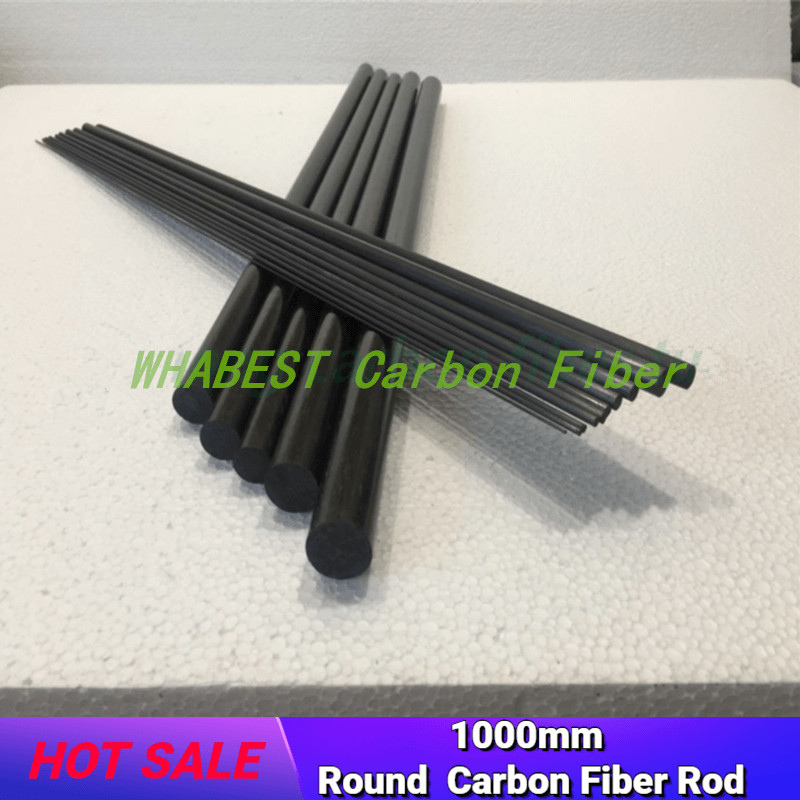

High quality Carbon Fiber Rod
100% Brand New!
Length: 1000mm
Outer Diameter:1.0mm, 2.0mm ,2.5mm ,3.0mm ,3.5mm ,4.0mm,4.5mm,5.0mm,5.5mm
6.0mm, 6.5mm ,7.0mm ,7.5mm ,8.0mm ,8.5mm ,9.0mm ,9.5mm
10mm, 11mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm
Surface: Black
If you want other size, and length just let me know, we can do it for you
High quality 3K Carbon Fiber Tubeapplication:
RC Quadcopter, Airplan ,Helicopter tail pipe, high-grade fixed-wing connecting tube, multi-rotor arm, tripod, Etc.
With 100% Japan import carbon fiber with EXCELLENT quality.
Our tube is roll Carbon Fiber Tube, not pultrusion tube, roll tube was have the longitude and weft yarn, but pultrusion tube only have the longitude, not weft yarn, so, the strength not as well as roll tubes. Carbon fiber is very light weight, the strength is steel's 9 times, but weight was about 1/3 of steel!
Mechanical Properties & Specification
The Tube Is Available The Following Lengths: 500mm-5000mm. If You Have A Large Order We Can Produce.
| OD |
Weight g/1000mm |
| 1.0mm | 1.3 |
| 2.0mm | 5 |
| 2.5mm | 7 |
| 3.0mm | 10 |
| 3.5mm | 14 |
| 4.0mm | 19 |
| 4.5mm | 24 |
| 5.0mm | 29 |
| 5.5mm | 35 |
| 6.0mm | 43 |
| 6.5mm | 60 |
| 7.0mm | 57 |
| 7.5mm | 64 |
| 8.0mm | 78 |
| 8.5mm | 84 |
| 9.0mm | 95 |
| 9.5mm | 108 |
| 10mm | 118 |
| 11mm | 142 |
| 12mm | 166 |
| 14mm | 233 |
| 15mm | 266 |
| 16mm | 310 |
| 18mm | 377 |
| 20mm | 459 |
Please Pay More Attention:
- We have our own factory, specialized in Carbon Fiber Tube for more then 10years
- We can produce carbon fiber tubes (aslo color tubes),rods, plates
- We can also provide machine tubes
- Batch order and customize size please feel free to contact for best price
- You could enjoy more favorable price with larger quantity.
|
|
- Bulk purchases and Customize order and any other question please contact Kitty, Email: kittycf6@gmail.com
